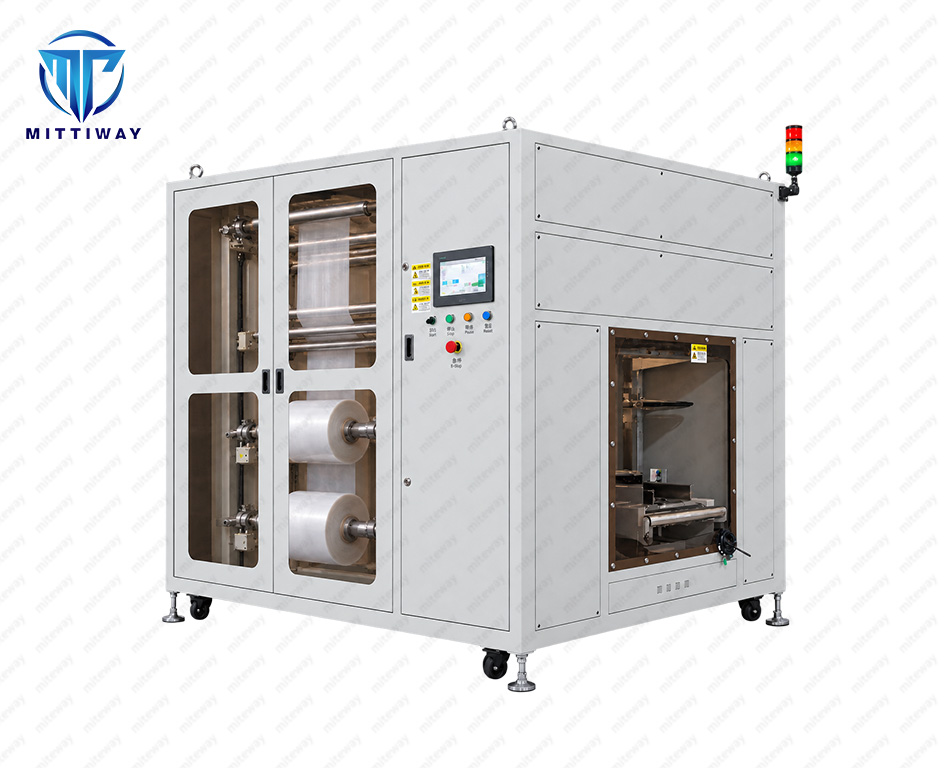

The MTW-TM50 automatically feeds film rolls, opens the bag and inserts it into cartons, reducing manual labor while improving packaging efficiency and consistency. Its enclosed design, dual film-roll system, servo drive and PLC control support stable operation and flexible production.
Suitable for chemical powders, food ingredients, feed, agricultural products and other applications requiring carton-in-bag packaging.
Provides stable film feeding and supports continuous production.
Opens and forms the film bag for smooth carton insertion.
Positions and inserts the bag according to carton size and location.
The enclosed frame and transparent doors improve operator safety and allow easy observation.
Provides intuitive operation, parameter setting and equipment status monitoring.
Can connect with carton erectors, filling systems, sealing machines, conveyors and palletizing systems.
Item | MTW-TM50 |
Machine Type | Automatic Carton Bagging Machine |
Speed | 5–6 Boxes/Min |
Film Type | M-Type Film |
Bagging Method | Straight Bagging |

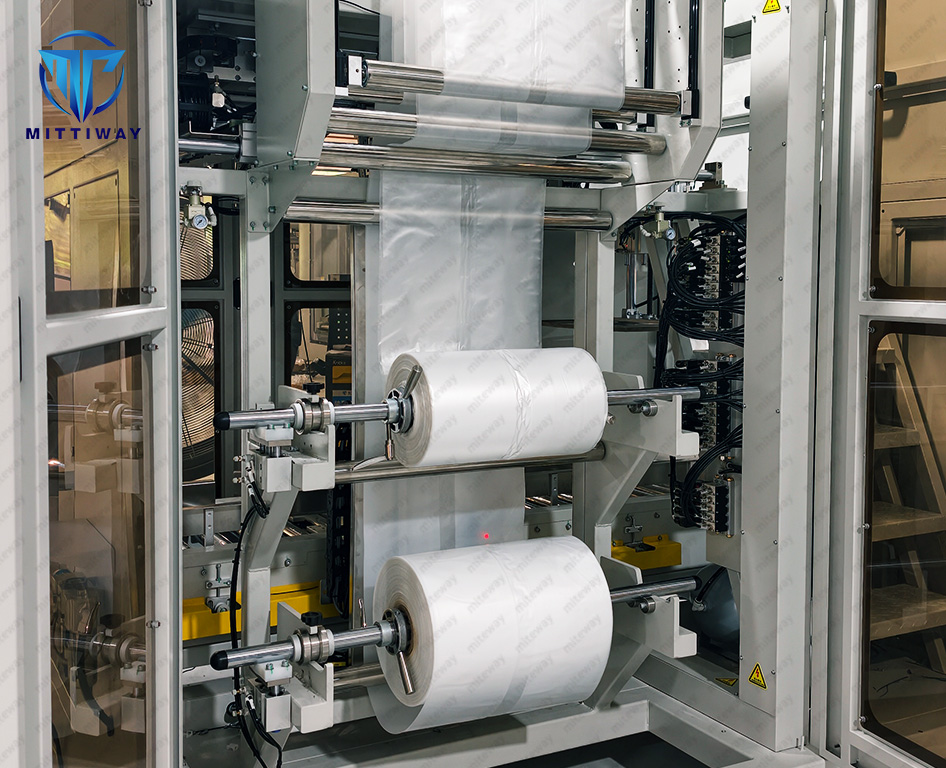

Film Rack | Dual Film Roll System |
Reference Carton Sizes | L410 × W300 × H410 mm; L410 × W300 × H220 mm; L400 × W390 × H185 mm |
Control System | Siemens PLC + HMI |
Servo System | Inovance |
Inverter | Mitsubishi |
Power Supply | 380V / 50Hz |
Table Height | 600 mm |
Line Integration | Supported |
Machine Structure | Powder-Coated Steel |
Color | Customizable |
Specifications are based on the current project design. Final configuration and applicable carton sizes can be customized according to product, carton and production requirements.
The MTW-TM50 can operate as a standalone machine or as part of a complete automated packaging line.
Carton Erecting
→ Automatic Bagging
→ Weighing & Filling
→ Bag Sealing
→ Carton Closing & Sealing
→ Robotic Palletizing
With communication interfaces and conveyor connections, the machine can integrate with upstream and downstream equipment for a complete automated packaging solution.
The MTW-TM50 is more than a standalone bagging machine. It is an automated inner-bag packaging unit designed for industrial packaging lines.
From film feeding and bag opening to carton insertion and line integration, it helps manufacturers upgrade from manual bagging to automated packaging.
From Manual Bagging to Automated Packaging.
From standalone machines to complete packaging lines, MITTIWAY provides customized automated packaging solutions for different products, packaging formats and production requirements.
