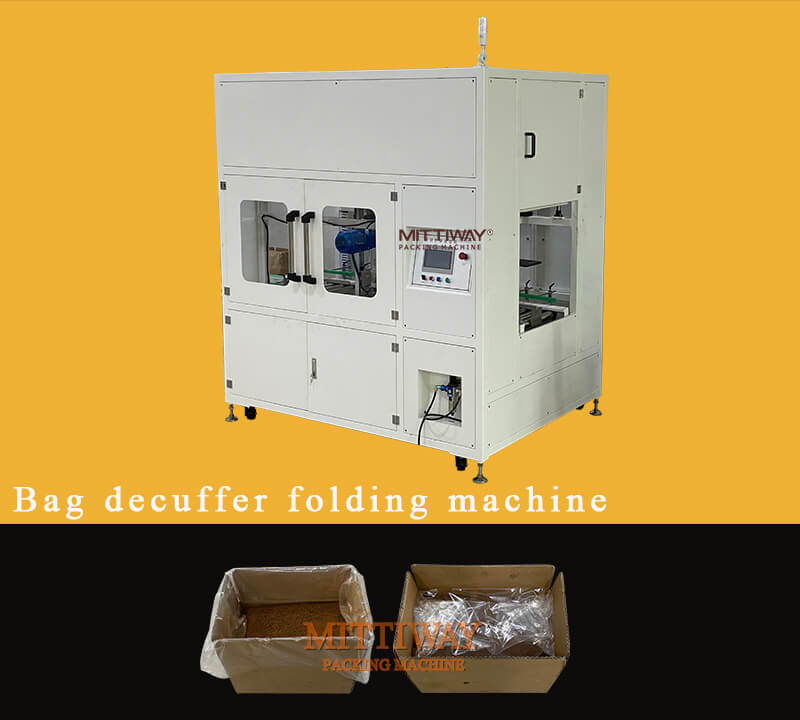

MTW-ZD50 An automatic bag folder machine is a device designed to fold and seal bags automatically, typically used in packaging and manufacturing industries. The machine is equipped with various mechanisms and features to efficiently fold and seal bags, reducing the need for manual labor and increasing productivity.
Configuration:
1. PLC / Touch panel : SIEMENS
2. Sensor:German LEUZE
3. Intermediate Relay : Japan OMRON
4. Temperature Controller:OMRONC
5. Contactor: SCHNEIDER
6. Pneumatic Parts: Taiwan Shako
7. Servo motor: Japan Mitsubishi
Model | MTW-ZD50 | Carbon steel |
Machine dimension | L2200W1500H1800mm | |
Packing size | L:200~500mm W:200~400mm H:200~300mm | |
Width of the film | 460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm) | |
Packing speed | 4~6ctn/min | |
Net weight | 380kg | |
Power | 400W | |
Power supply | 110V220V/380V 50/ 60Hz , 1 / 3Phase | |
Air pressure | 8kg/cm³ | |
Max current | 10A |
