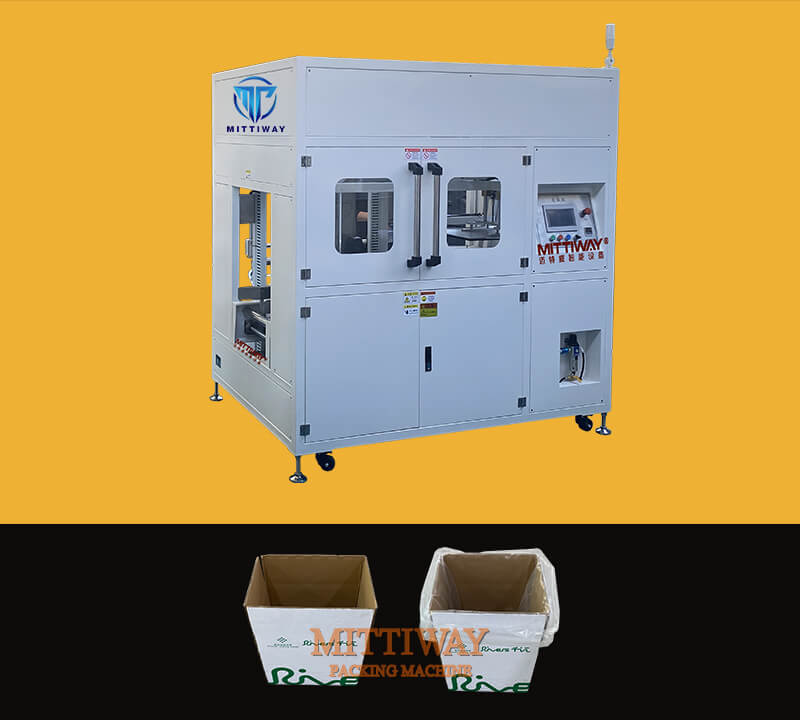

MTW-T50 is an automatic bag making and inserting pack machine ,which adopts M-type PE film as the main consuming material. It can make bag and insert the bag automatically into the carton,which is mainly for the used boxes.The used boxes are soft and weak with its panels upright or hang down, we build the customized blowing type bag inserter specially for this kind of used cartons. The machine has small-footprint and simple structure, which is easily operated and easy maintenance.  It is widely applied on oil, flour and food industry. The packing is high efficient and good-looking for products.

Configuration:

1. PLC :Panasonic/Mitsubishi

2. Touch panel : Weiview

3. Sensor:German Sick

4. Intermediate Relay : Japan OMRON

5. Temperature Controller:OMRONC

6. Contactor: SCHNEIDER

7. Pneumatic Parts: Airtac

8. Servo motor: Japan Panasonic/Mitsubishi

Model	MTW-T50	Carbon steel
Machine dimension	L2200W1800H2000mm
Packing size	L:200~500mm W:200~400mm H:200~300mm
Width of the film	460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm)
Thickness of film	30/50/80/100 micron
Packing speed	4~7ctn/min
Net weight	1380kg
Power	5KW
Power supply	380V ,50/ 60Hz , 3Phase
Air pressure	8kg/cm³,0.6~0.8Mpa
Max current	10A

---
