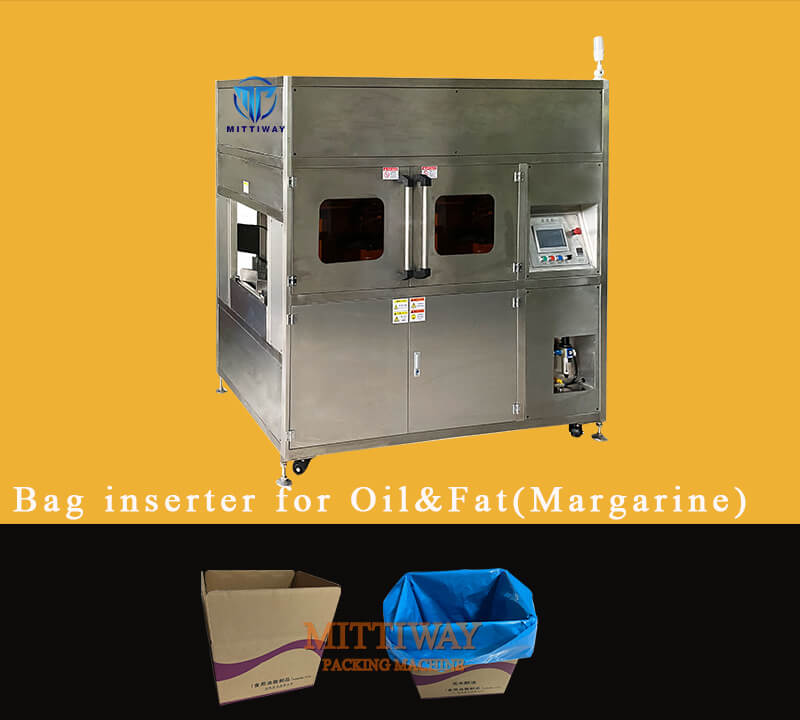

MTW-T50S is an automatic stainless steel bag inserting packaging machine ,which adopts M-type PE film as the main consuming packing material. It can make bag and insert the bag automatically into the carton,plastic jars and any other containers. The bag inserter machine has small-footprint and simple structure, which is easily operated and easy maintenance. The poly bag inserting machine is widely applied on oil, grease, margarine,flour, the other food packaging industry and chemical material. The packing is high efficient and good-looking for products.



Configuration:

1. PLC :Panasonic/Mitsubishi

2.Touch panel : Weiview

3. Sensor:German Sick

4. Intermediate Relay : Japan OMRON

5. Temperature Controller:OMRONC

6. Contactor: SCHNEIDER

7. Pneumatic Parts: Airtac

8. Servo motor: Japan Panasonic/Mitsubishi



Model	MTW-T50S	Stainless steel
Machine dimension	L2200W1800H2000mm
Packing size	L:200~500mm W:200~400mm H:200~300mm
Width of the film	460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm)
Thickness of film	30/50/80/100 micron
Packing speed	4~7ctn/min
Net weight	1380kg
Power	5KW
Power supply	380V ,50/ 60Hz , 3Phase
Air pressure	8kg/cm³,0.6~0.8Mpa
Max current	10A

---
