BAG TYING MACHINE AND BAG MAKER INSERTER TWIST TIE MACHINE

BAG TYING MACHINE AND BAG MAKER INSERTER TWIST TIE MACHINE

935 Review

Twist tie machine Poly bag inserter packaging line

   MTW-T50 is an automatic bag maker inserter machine, it can make the poly bag and insert the bag in the container ,like carton, bucket and any othher container.

   MTW-TZ50 is an automatic bag cable tie machine(twist tie machine). It can decuffer the bag and tie the bag automatically into the contianer. The machine has small-footprint and simple structure, which is easily operated and easy maintenance.  It is widely applied on chemical engineering industry. The packing is high efficient and good-looking for products.

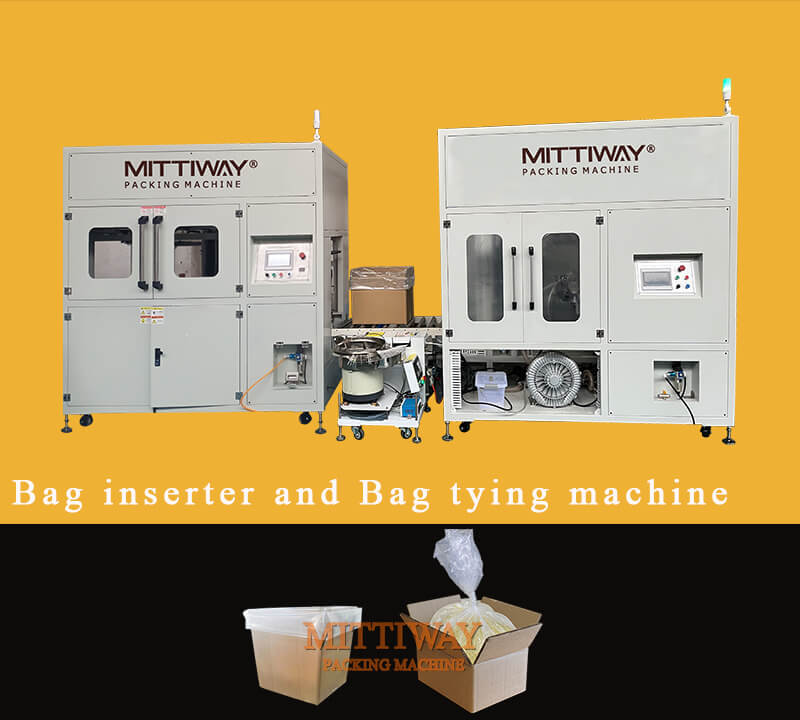

        This is the automatic Bag inserter and Bag tying machine packaging line.

Configuration(It is options according to the customer requirement):

1. PLC / Touch panel : Panasonic

2. Sensor:German SICK

3. Intermediate Relay : Japan OMRON

4. Temperature Controller:OMRONC

5. Contactor: SCHNEIDER

6. Pneumatic Parts: Taiwan Shako

7. Servo motor: Japan Panasonic

Model

MTW-T50

Machine dimension

L2200W1500H1800mm

Packing size

L:200~500mm W:200~400mm H+W/2≤500mm

Width of the film

460~800mm (Sum the Length of the carton +Width of the carton +150mm)

Packing speed

7~10ctn/min

Net weight

380kg

Power

400W

Power supply

110V220V/380V 50/ 60Hz , 1 / 3Phase

Air pressure

8kg/cm³

Max current

10A


Model

MTW-TZ50

Machine dimension

L2200W1500H1800mm

Packing size

L:200~500mm W:200~400mm H+W/2≤500mm

Width of the film

460~800mm (Sum the Length of the carton +Width of the carton +150mm)

Packing speed

7~10ctn/min

Net weight

380kg

Power

400W

Power supply

110V220V/380V 50/ 60Hz , 1 / 3Phase

Air pressure

8kg/cm³

Max current

10A
