This machine is designed to be simple to operate, economical, durable, safe, and has the lowest failure rate;

Suitable for packaging of the same carton size at the same time. If you need to change the carton size, manually

Just adjust it manually, it takes 15-30 minutes;

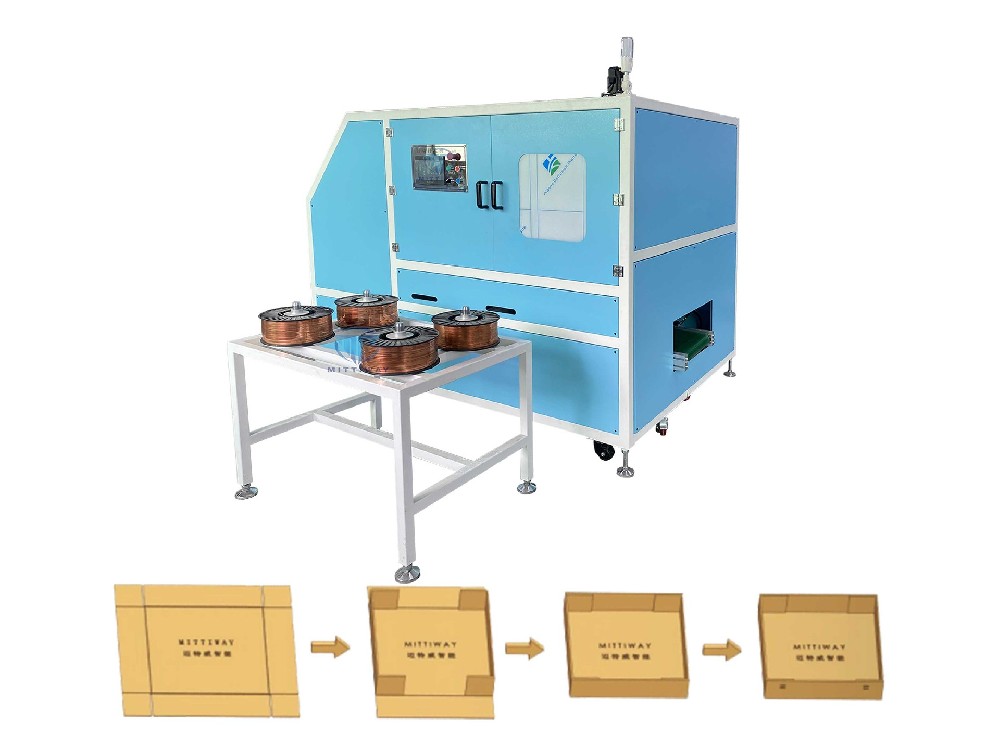

This machine is rationally designed, taking out boxes, stamping and forming simultaneously, and nailing boxes simultaneously at one time;

This machine can operate as a stand-alone machine or can be used in conjunction with automated packaging lines.

Model	MTW-ZH25D
Comveyor speed	900-1500 Pcs/H
Bag size	L300-500*W300-400*H60-100mm
Power supply	380V、50Hz、4Kw
Air pressure	600NL/min、0.5-0.6Mpa
Discharge table height	300mm
Machine dimensions	L2500*W2500*H1850mm
Machine weight	1200kg

Note: This model needs to be used together with a nailing machine

---
