Model | MTW-Z15 (Aircraft tray)MTW-Z15 (Lid and base box) |
Comveyor speed | 720-1200 Pcs/H |
Bag size | L170-270*W120-170*H30-60 mm |
Power supply | 220V、50Hz、2Kw |
Air pressure | 600NL/min、0.6-0.8Mpa |
Discharge table height | 750mm |
Machine dimensions | L1900*W1300*H2050mm |
Machine weight | 850kg |
The machine is easy-to-operate, sustainable, and safe with lowfailure rate.
The machine will work continually for the same tray size. Whenyou change the packing size, it will take 10-15minutes to do thechangeover manually.

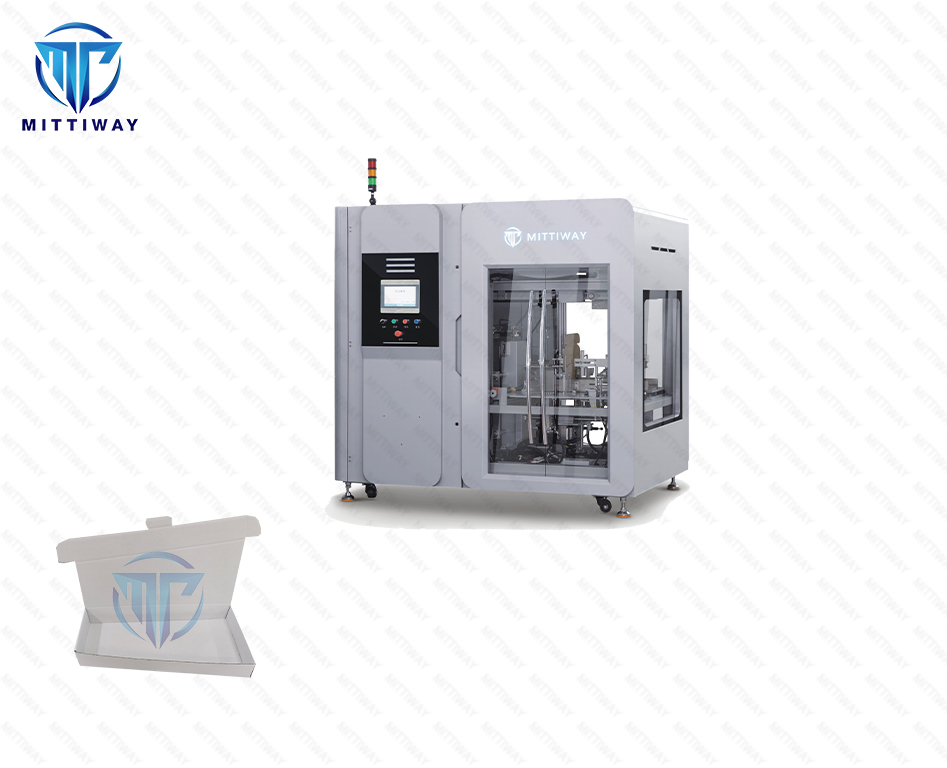

With reasonable design, the machine picks up the cardboard andpresses it through stamping to form the box, fold and lock twoor three flaps automatically.
It can work with the single machine, and also can match inautomatic packaging line.
