Fruit box folding machine
Fruit box folding machine
Fruit box folding machine
Fruit box folding machine
Fruit box folding machine
Fruit box folding machine

Fruit box folding machine

2 Review

Application industry: fresh fruits and vegetables

Product model

MTW-ZH25R

Bagging speed

1500-2400 Pcs/H

Packaging size

L250-350*W200-300*H60-100 mm

Power supply

220/380V、50Hz、6Kw

Air supply

600NL/min、0.6-0.8Mpa

Table height

300mm

Machine size

L2400*W1600*H2150mm

Machine weight

960kg

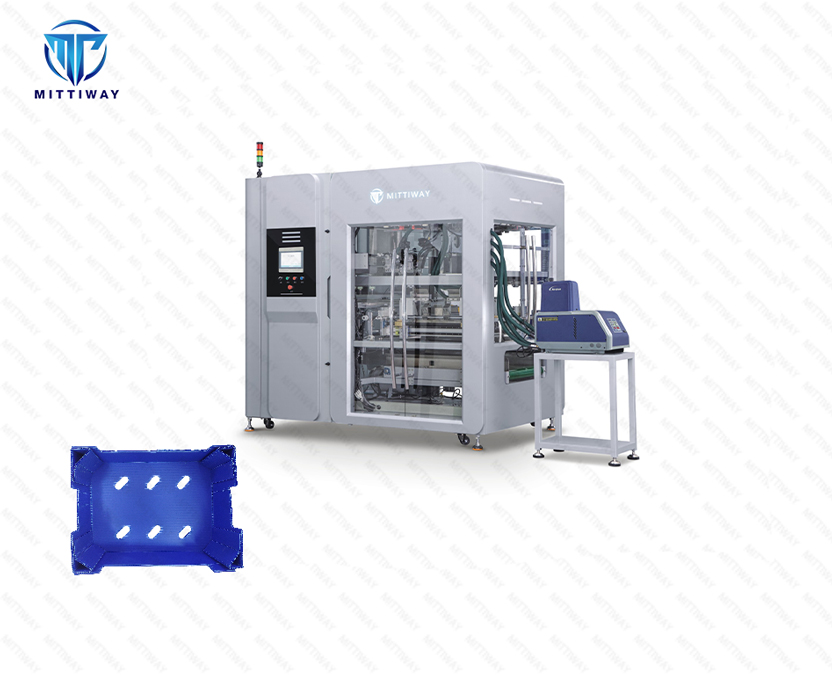

This folding machine is designed specifically for triangular fruit boxes and offers exceptional performance. Utilizing advanced automation technology, it quickly and accurately folds flat cardboard into beautiful, practical triangular boxes. Its imported intelligent glue spraying system automatically compensates for glue application, ensuring precise glue application and a secure bond, preventing the boxes from falling apart during transport and storage. The addition of a folding blade during forming allows it to easily accommodate a variety of box shapes, meeting different fruit varieties and packaging requirements.

The triangular fruit box folding machine is extremely user-friendly. Its automatic bottom-feeding system with vacuum suction allows for seamless, smooth feeding, forming, and conveying, significantly improving production efficiency. The motion controller, photoelectric tracking system, air source detection system, and touchscreen human-machine interface work together to automate the entire box forming process. Operators simply set parameters on the touchscreen to easily complete tasks. Fiber-optic positioning for edge folding and gluing effectively minimizes gluing errors. The servo-driven gluing system pushes the cardboard forward and backward, further reducing errors in the photoelectric eye's illumination of the cardboard, ensuring even more accurate gluing.

Furthermore, this carton folding machine takes safety into account, featuring an infrared safety protection system to provide a solid layer of protection for operators.

Its automatic fault diagnosis function quickly locates problems, facilitating timely repairs and minimizing downtime. The quick-change mold adjustment mechanism allows users to quickly switch carton shapes based on different order requirements, enhancing production flexibility. Furthermore, the cage-type frame design, integrated processing, and grouping combine to create a compact footprint and excellent stability, making it an ideal choice for fruit packaging companies.
